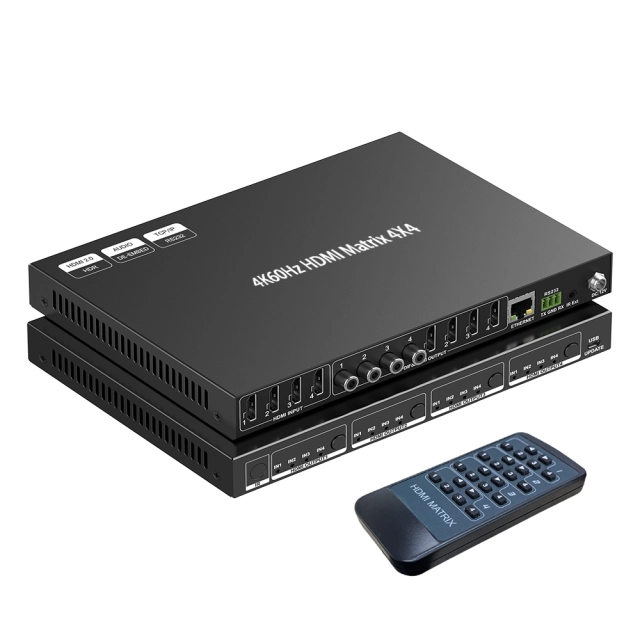

CXMX-44HAS2 4×4 HDMI 2.0 Matrix – 4K@60Hz 4:4:4 with HDR & Audio Extraction

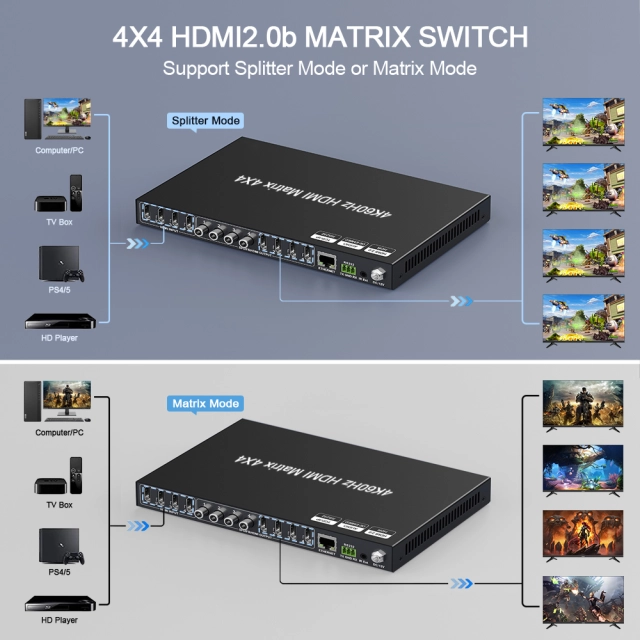

  • 4×4 True Matrix Switching
    Route four HDMI source devices independently to four HDMI displays.

  • Full 18Gbps Bandwidth (HDMI 2.0)
    Supports high-speed, uncompressed signal transmission.

  • 4K@60Hz 4:4:4 Video Support
    Delivers ultra-clear resolution with full chroma sampling and accurate color reproduction.

  • HDR & Dolby Vision Compatible
    Supports HDR10, Dolby Vision, 3D formats, and 4:4:4 color space.

  • HDCP 2.2 Compliance
    Ensures compatibility with protected 4K content.

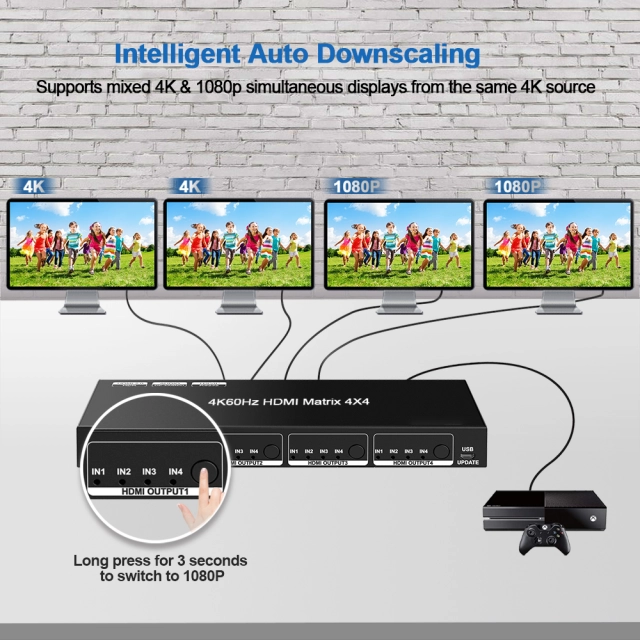

  • Integrated Scaler Output
    Downscale 4K signals to 1080p for mixed-resolution installations.

  • EDID Management
    Optimizes communication between source devices and displays.

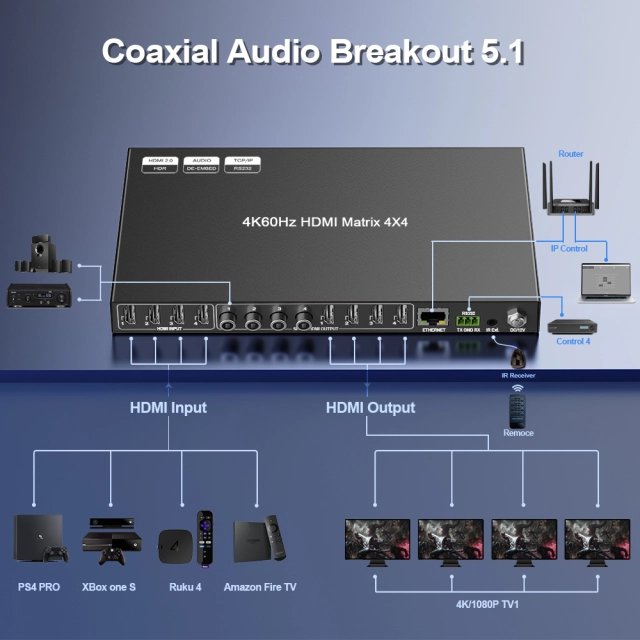

  • Coaxial Audio Breakout
    Extract digital audio independently for external amplifiers or audio systems.

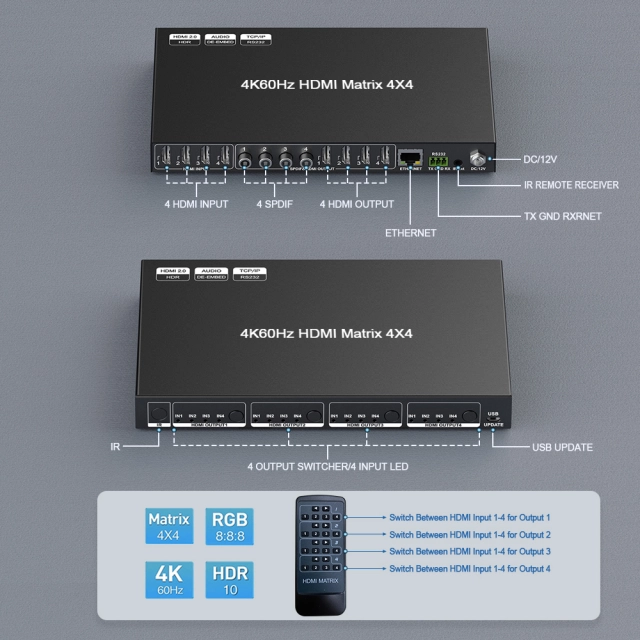

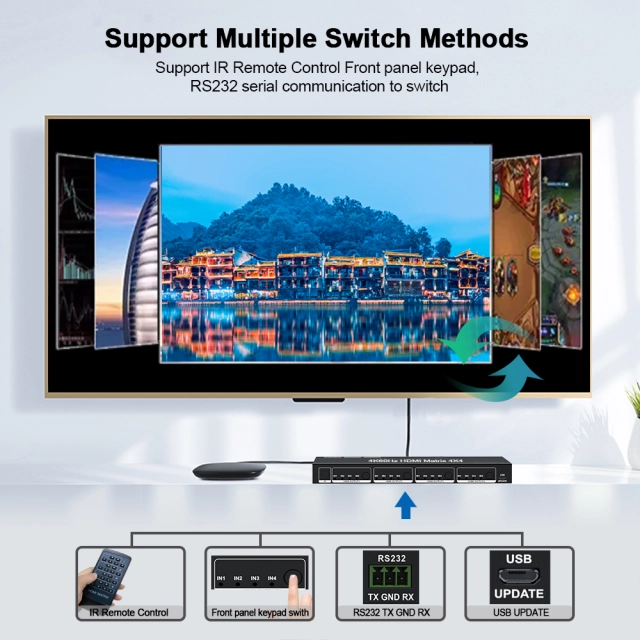

  • Advanced Control Options
    Operate via front panel buttons, IR remote, RS232, USB, or IP control.

  • Signal Retiming Technology
    Maintains signal integrity with no loss in video or audio quality.

  • Plug & Play Installation
    No driver required; installs quickly in professional environments.

Download PDF
Send Enquiry

Product Description

The CXMX-44HAS2 4×4 HDMI Matrix is designed for professional AV installations requiring reliable 4K signal distribution and flexible control integration. Supporting full 18Gbps bandwidth, it delivers uncompromised 4K@60Hz 4:4:4 resolution with HDR10 and Dolby Vision compatibility for vivid color and enhanced dynamic range.

Its built-in scaler function allows seamless integration into systems combining 4K and 1080p displays, while EDID management ensures stable source-to-display communication. The integrated coaxial audio breakout enables independent digital audio routing to external sound systems.

With comprehensive control options including IR, RS232, USB, and IP, the CXMX-44HAS2 is ideal for conference rooms, digital signage networks, control centers, broadcast environments, and high-end home theaters. Signal retiming ensures stable, high-quality performance across all outputs.

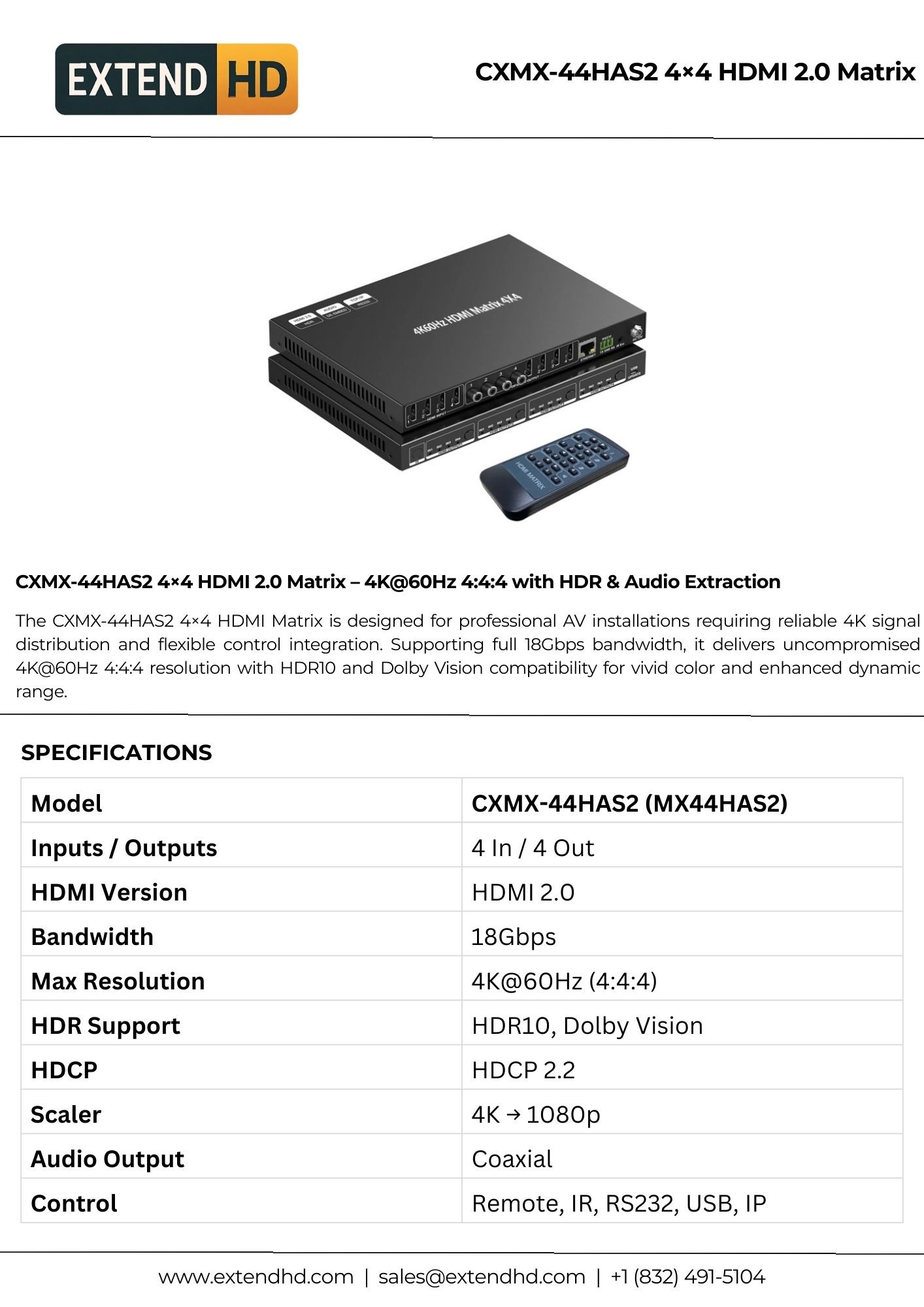

Specifications

Model CXMX-44HAS2 (MX44HAS2)
Inputs / Outputs 4 In / 4 Out
HDMI Version HDMI 2.0
Bandwidth 18Gbps
Max Resolution 4K@60Hz (4:4:4)
HDR Support HDR10, Dolby Vision
HDCP HDCP 2.2
Scaler 4K → 1080p
Audio Output Coaxial
Control Remote, IR, RS232, USB, IP

FAQ

Most frequent questions and answers

ExtendHD solutions work seamlessly with TVs, projectors, monitors, sound systems, and most standard HDMI-enabled devices.

No. Most ExtendHD products are plug-and-play. Advanced units may offer optional PC-based control for customization.

Absolutely. Our products are designed for professional-grade performance, suitable for offices, retail, classrooms, and home theaters.

Depending on the model, our HDMI extenders support distances up to 100 meters using CAT6/7 cables.

We offer dedicated customer support, user manuals, and setup assistance to ensure smooth installation and usage.
