  • 4K UHD Output via HDMI 2.0 @ 60Hz (4:4:4, 8-bit)

  • Model: EX-VW42X

  • Supports Multiple Layouts: 2×2, 1×2, 1×3, 1×4, 2×1

  • Independent EDID Management for optimal display performance

  • L/R Audio De-Embedding from HDMI source

  • Multi-interface Control: IP/Web UI, RS232, PC GUI, Front Panel

  • Deep Color & 3D Compatibility: 30-bit, 36-bit, 3D video formats

  • Signal Retiming: Ensures no visual loss or delay

  • Quick Setup: Plug-and-play, driver-free installation

Download PDF
Send Enquiry

Product Description

The EX-VW42X by ExtendHD is a high-performance 4K video wall controller designed for multi-screen display setups in demanding professional environments. Supporting 4K@60Hz (4:4:4, 8-bit) via HDMI 2.0 and HDCP 2.2, it ensures pixel-perfect video with deep color and 3D support.

Offering multiple display configurations—2×2, 1×2, 1×3, 1×4, and 2×1—this controller provides flexible video wall management with precise EDID handling. It includes stereo audio de-embedding and supports full signal retiming for lossless output, even over longer cable distances.

Designed for seamless integration, it offers IP, RS232, and PC GUI control, along with plug-and-play installation—no drivers required.

Specifications

Specification Details
Model Number EX-VW42X

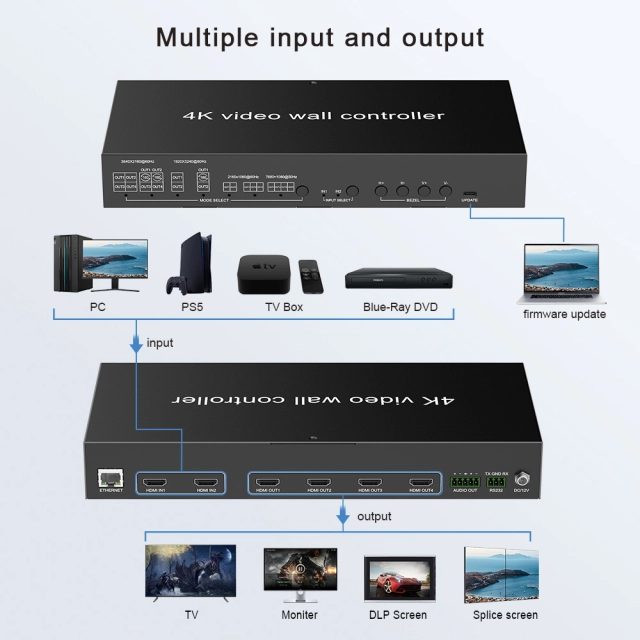

Input 1 × HDMI 2.0
Output 4 × HDMI (self-adaptive)
Max Resolution 3840×2160 @ 60Hz (4:4:4, 8-bit)

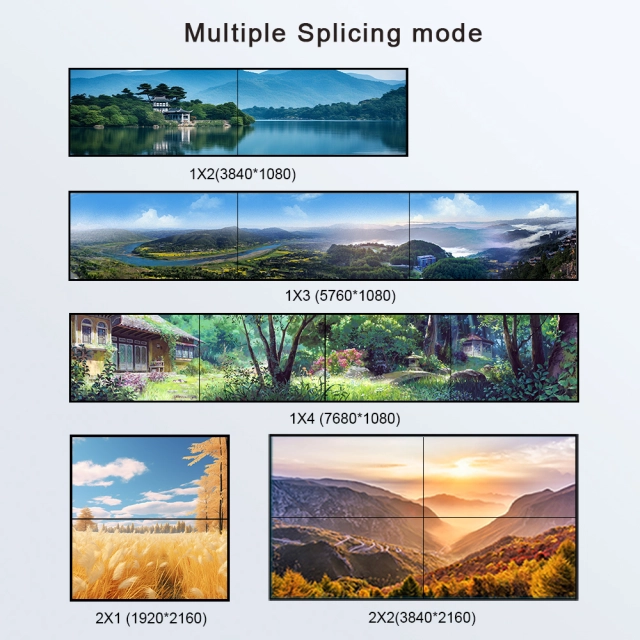

Supported Layouts 2×2, 1×2, 1×3, 1×4, 2×1
HDCP Support HDCP 2.2
Audio Output L/R via Phoenix Terminal (De-Embedded)
Control Options RS232, IP/Web UI, PC GUI, Front Panel
Color Depth Support 30-bit, 36-bit (Deep Color), 3D video
Signal Retiming Supported (lossless quality)
Power Supply DC 12V
Installation Plug-and-play, no drivers needed
Use Cases Video walls, retail signage, museums, offices, showrooms, control rooms

FAQ

Most frequent questions and answers

ExtendHD solutions work seamlessly with TVs, projectors, monitors, sound systems, and most standard HDMI-enabled devices.

No. Most ExtendHD products are plug-and-play. Advanced units may offer optional PC-based control for customization.

Absolutely. Our products are designed for professional-grade performance, suitable for offices, retail, classrooms, and home theaters.

Depending on the model, our HDMI extenders support distances up to 100 meters using CAT6/7 cables.

We offer dedicated customer support, user manuals, and setup assistance to ensure smooth installation and usage.
